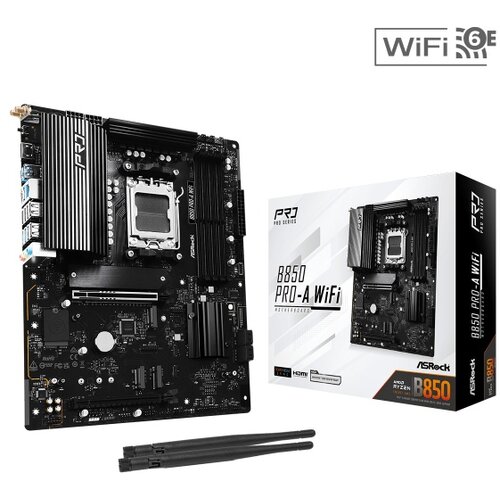

AsRock AM5 B850 pro-a wifi cene

Unique Feature Superb Productivity PCIe Gen5 (Graphics, M.2) Dual Channel DDR5 RockSolid Durability 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC Ultrafast Connectivity 2.5G LAN, 802.11axe WiFi 6E Module EZ Update BIOS Flashback Button ASRock Auto Driver Installer EZ Troubleshooter ASRock Post Status Checker CPU Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors* * The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details. Chipset AMD B850 Memory Dual Channel DDR5 Memory Technology 4 x DDR5 DIMM Slots Supports DDR5 ECC/nonECC, unbuffered memory up to 8000+(OC) Max. capacity of system memory: 256GB Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules BIOS 256Mb AMI UEFI Legal BIOS with GUI support Graphics Integrated AMD RDNA graphics (Actual support may vary by CPU) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x USB 3.2 Gen1 TypeC, supports DP 1.4 HBR3 and max. resolution up to 4K 60Hz (DPalt mode supports DP1.4a) Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec) LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Wireless LAN 802.11axe WiFi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax/axe Supports DualBand 2x2 with extended 6GHz band* support 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.2 Supports MUMIMO *The WiFi 6E module is supported by Microsoft Windows 11 only. There is no driver available for Windows 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available. A 6GHz compatible router is required for 6E functionality. Slots CPU: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module 15 Gold Contact in VGA PCIe Slot (PCIE1) * PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors. If M2_3 is occupied, PCIE2 will be disabled. Supports NVMe SSD as boot disks Storage CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Ultra M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode* 2 x SATA3 6.0 Gb/s Connectors ASMedia ASM1061: 2 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks M2_1 is the first priority for M.2 installation. M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors. M2_2 will run at Gen4x4 with 9000 and 7000 series processors, Gen4x4 with 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2) series processors. If M2_3 is occupied, PCIE2 will be disabled. If SATA3_1 or SATA3_2 is occupied, M2_4 will downgrade to Gen3x2 mode. RAID Supports RAID 0 and RAID 1 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices USB CPU: 1 x USB 3.2 Gen2 TypeC (Rear) 1 x USB 3.2 Gen1 TypeC (Rear) 2 x USB 3.2 Gen1 TypeA (Rear (USB32_1 and USB32_2)) Chipset: 1 x USB 3.2 Gen2x2 TypeC (Front) 4 x USB 3.2 Gen1 TypeA (2 Rear (USB32_3 and USB32_4), 2 Front) 9 x USB 2.0 (6 Rear, 3 Front) * All USB ports support ESD Protection Connector 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers** 2 x CPU Fan Connectors (4pin) (Smart Fan Speed Control)*** 4 x Chassis Fan Connectors (4pin) (Smart Fan Speed Control)*** 1 x AIO Pump Fan Connector (4pin) (Smart Fan Speed Control)*** 1 x 24 pin ATX Power Connector 2 x 8 pin 12V Power Connectors (HiDensity Power Connector) 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) * Supports in total up to 12V/3A, 36W LED Strip ** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W). CPU_FAN2, CHA_FAN14 and AIO_PUMP support the fan power up to 3A (36W). CPU_FAN2, CHA_FAN14 and AIO_PUMP can auto detect if 3pin or 4pin fan is in use. Rear Panel I/O 2 x Antenna Ports 1 x HDMI Port 1 x USB 3.2 Gen2 TypeC Port (10 Gb/s) 1 x USB 3.2 Gen1 TypeC Port (DPalt mode supports DP1.4a) 4 x USB 3.2 Gen1 TypeA Ports 6 x USB 2.0 Ports 1 x RJ45 LAN Port 1 x BIOS Flashback Button HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI Software ASRock Motherboard Utility (ATuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock Auto Driver Installer ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop. Accessories 1 x I/O Shield 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas Form Factor ATX Form Factor: 12.0in x 9.6in, 30.5 cm x 24.4 cm 8 Layer PCB OS Microsoft Windows 10 64bit / 11 64bit.
